CE certification Full Automatic Shrink Film Packaging Machine
Product Description

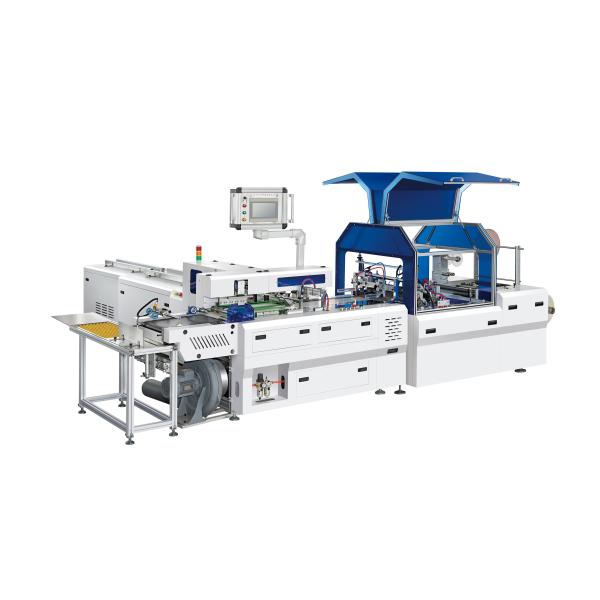

The machine is a dedicated device for fully automatic bag packing for product card, manual.certificate of honor, comic book, document bag, envelope, shingle, notebook, hangtag, andheterogenic product. lt has such functions as folding in half, bag making, counting, trimming, gildinglabeling, sticking adhesive label, bagging and hot sealing and cutting. The whole action is of modernmovement module controlwith PLC multiaxial servo execution to realize memory function of PLCspecification and dimension data. Convenient data commissioning,simple and reasonable structureaccurate and fast positioning as well as automatic transport and counting of finished products exist
Product characteristics
1. Quantity fixing: With quantity counting function, according to the customerrequirement, filling the fixed quantity inside the bag.
2. Bag making: With bag making machine. only feeding the plastic film, it canproduce the bag directly according to the request,save the time and labour,andreduce the cost, increase the production's efficiency, and create the benefit
3. Bag filling: The machine is controlled by PLC and servomotor, All actionsare pneumatic, the structure is simple, and locating is fast. And it also can addthe function of gluing, punching, ultrasonic ect, replace the manual operationabsolutely.
| max speed | 20-40bags/min |
| max size of packing | 300*420mm |
| min size of packing | 160*160mm |
| thickness of packing | 2-30mm |
| film thickness | 0.03-0.06mm |
| max diameter of film | 420mm |
| opp film specification | max:320*420mm |
| | min:170*170mm |
| motor power | 10kw |
| machine weight | 2200kg |
| dimension of machine | 4500*3300*1650mm |
